SS Letter + Aluminum

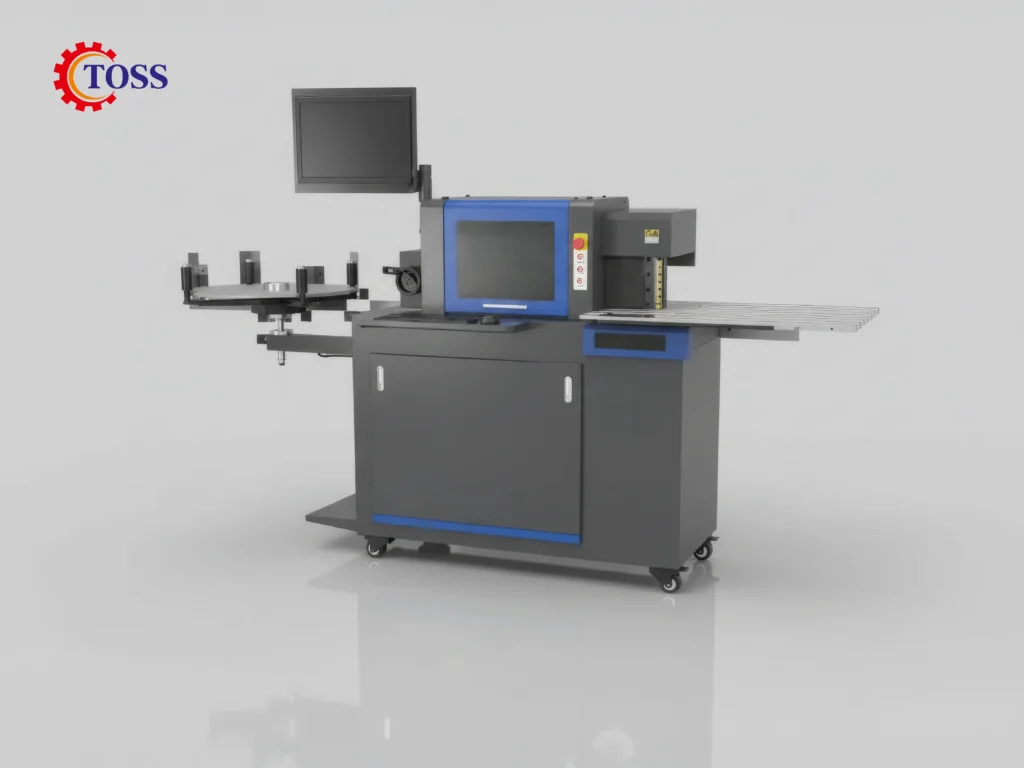

The TOSS SS + Aluminium + Profile Channel Bending Machine is designed for advanced channel letter fabrication and signage production. Built to handle stainless steel, aluminium, and profile materials, this machine delivers precise bending, clean edge finishing, and consistent letter shaping. With high bending accuracy, stable material feeding, and support for multiple material thicknesses, it is ideal for LED sign boards, commercial signage, and large-scale branding applications.
Parameters
| Parameters | Values |
| Feeding System | Circulation Clamp Feeding System |
| Minimum Band Radius | 15 mm |
| Power | 5.0 kW |
| Control Axis | 5 Axis |
| Notching Angle | 30 Degree |
| Material Thickness | 0.6 to 2 mm |
| Flanging Width | 14 mm |
| Compress Air | 0.8 Mpa |
| Bending Distance from Start | 5 mm |
| Min. Bending Radius | 10 mm |
| Notching Type | Control by Servo Motors |
| Motor | 4 pcs. Servo + 2 Stepper |
| Min. Distance Between Interior and Exterior Angle | 6 mm |
| Material Type | Stainless Steel, Aluminum, Galvanized Sheet, Flat and Profile |
| Dimension (L x H x W) | 1970 mm x 1040 mm x 1020 mm* |
| Processing Height | 160 mm |
| Net Weight | 900 kg |
