Fiber Metal Laser 1530

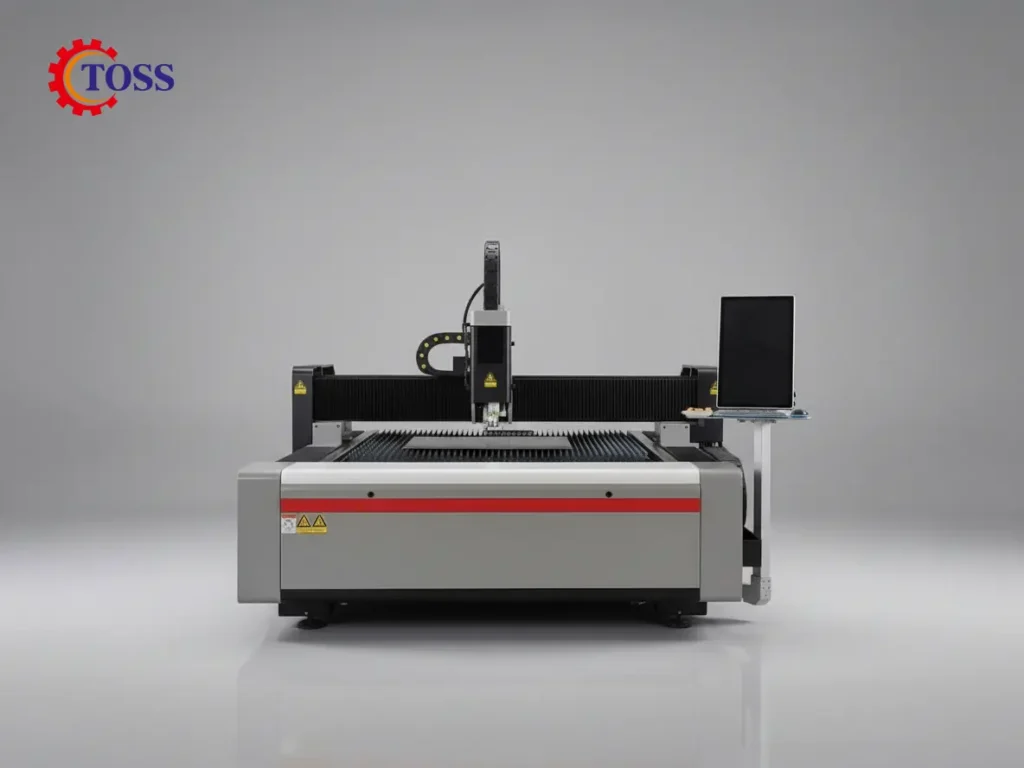

The TOSS-1530 fiber laser cutting machine is engineered for high-speed, precision metal cutting in demanding industrial environments. Featuring a spacious 1500 × 3000mm working area and configurable laser power up to 6kW, it delivers clean cuts with minimal material waste. Equipped with trusted components like Raytools laser head and IPG/Raycus/MAX sources, this machine is ideal for sheet metal fabrication, automotive parts, electrical panels, and commercial manufacturing. Its advanced control system, industrial cooling, and wide software compatibility ensure reliable performance, improved productivity, and consistent cutting quality.
Parameters
| Parameters | Values |
| Power Options | 1500W, 2000W, 3000W, 6000W, 8000W |
| Cutting Thickness | Up to 20mm (depending on metal type) |
| Cutting Area | 1500mm x 3000mm (custom sizes available) |
| Laser Source | MAX or Raycus (Optional) |
| Control System | CypCut |
| Cooling System | Water cooling or Air cooling (Optional) |
| Transmission System | Rack and pinion or Ball screw (Optional) |
| Working Area (XYZ) | 1500 * 3000 mm |
| Body Structure | Thicken steel made lathe |
| X, Y Structure | Gear rack |
| Rails | Taiwan HIWIN 25# size square rails |
| Z Structure | Taiwan TBI ball screw |
| Max Moving Speed | 70,000 mm/min |
| Max Engraving Speed | 50,000 mm/min |
| POWER | Raycus (1500W/2000W/3000W) |
| Motor | Yaskawa / Leadshine servo motor and driver |
| Voltage | G Code |
| Drive Type | Cypcut software |
| Working Dictate | Included |
| Operating System | Included |
| Software | Included |
| Auto Focus | Optional |
| Oil Lubricator | Yes |
| Running Environment | 0–45°C |
| G.W (Gross Weight) | 3800 KGS |
Applications
